應用：
適用于煤礦液壓支架，綜合采煤機組等液壓系統輸送礦物油、水基液壓油或水，工作溫度范圍為-40℃~+100℃。膠管有阻燃及導靜電的特性。執行標準
膠管執行MT/T98及GB/T3683標準。
外觀：
外表黑色，有光面和布紋管。
Application：
Suitable for coal mine hydraulic support, shearer hydraulic system integrated delivery of mineral oil, water-based hydraulic oil or water, operating temperature range of-40℃~+100 ℃. Properties of flame retardant and static conductive rubber hose.
Applicable Standards：
Rubber hose according to standard MT/T98 and GB/T 3683
Appearance：
Visually black, with polish or wove pattern
結構特性：
膠管由耐油的內膠層、二層高強鋼絲編織增強層、耐天候性優良導靜電的外膠層組成。
601RB2型膠管的尺寸與601型二層鋼絲編織液壓膠管一致。
602RB2型膠管的尺寸與602型二層鋼絲編織液壓膠管一致。

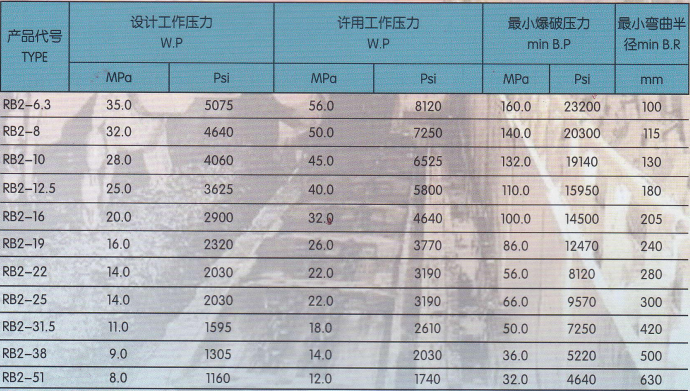

技術參數：
Structural Characteristics：
The rubber hose consists of oil-resistant inner lavertwo lavers of steel wire braid reinforcement and weather resistant,electrostatic-conductive,inflaming retarding outer layer.
601RB2 type size and type 601 two laver steel wire braided hydraulic hose line
602RB2 tvpe size and type 602 two laver steelwire braided hydraulic hose line
